Oz Matrix

28th December 2003

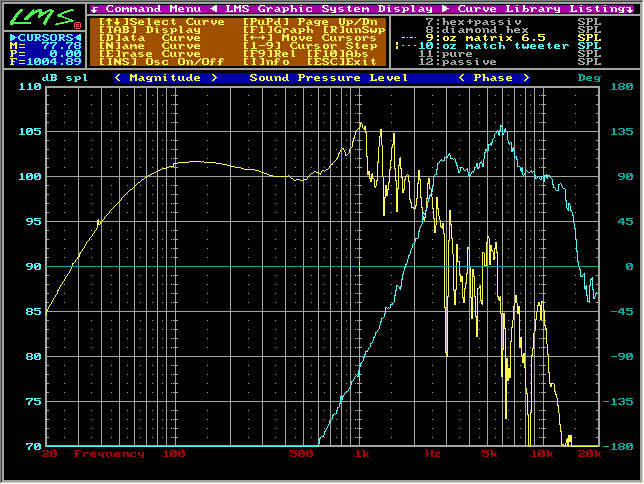

This mid is OK, it has a near flat, although not flat, but extremely smooth curve from around 100Hz to 500Hz. Again this is a extremely good candidate for mid-bass. Cone breakup is early, but luckily slowly rising. However the rise is not smooth, but with ripple so this is not good and will be heard.

The tweeter starts quite late around 2.5kHz and ends too early around 12kHz. The response is not smooth at all but peaky with lots of sudden changes. This tweeter will sound rough / harsh and fearsome. Not delicate at all.

Either of these speakers are not recommended for purchase because lower cost and better quality speakers has been found. Those are far more easy to setup and optimise.
